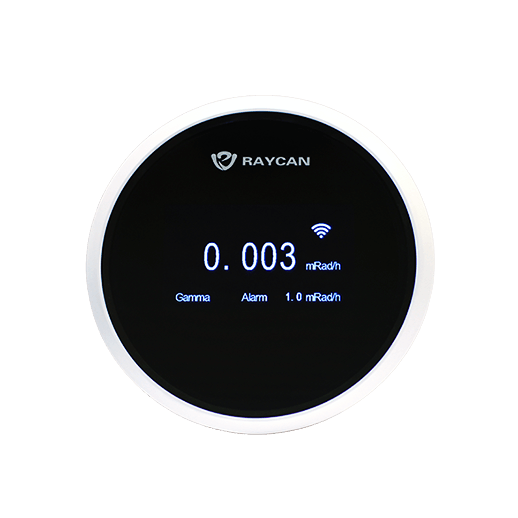

RadWall-H | 3-in-1 High Sensitivity Area Radiation Monitor The RadWall-H is a next-generation, all-digital High Sensitivity Area Radiation Monitor designed for precision environmental tracking. Integrating an alarm unit, a high-performance scintillation detector, and mesh networking capabilities, it provides a scalable and robust safety backbone for any facility.

Ultra-High Sensitivity: Powered by YSO+SiPM technology for rapid detection of even the slightest radiation fluctuations.
Smart Mesh Networking: Supports self-healing and self-forming ZigBee networks for wide-area monitoring.
Clear Visualization: Features a large HD LCD for instant, clear dose rate readouts in any lighting condition.
Integrated Solution: Includes RadSuite Monitoring Software to accommodate scalable applications of any complexity.

RadWall-H User Guide-Sv

Download Software

SKU: ARM-WAL-H Category: Area Radiation Monitor

Description

RadWall-H | Professional High Sensitivity Area Radiation Monitor

The RadWall-H represents the pinnacle of fixed-site radiation protection. It is an advanced High Sensitivity Area Radiation Monitor. Furthermore, it combines an Alarm and Display Unit (ADU) with a professional-grade internal scintillation detector. This 3-in-1 system is ideal for organizations that require fast and networked radiation monitoring. Consequently, it protects your personnel and infrastructure in high-stakes environments effectively.

🔬 Superior Detection Performance

At the heart of the RadWall-H system is our industry-leading YSO scintillation crystal. We paired this crystal with state-of-the-art Silicon Photomultipliers (SiPM). By utilizing the patented Multi-Voltage Threshold (MVT) algorithm, this High Sensitivity Area Radiation Monitor delivers exceptional accuracy.

Fast Response Times: It monitors in real-time. Therefore, it detects fluctuations instantly.
Broad Spectrum Coverage: It processes various radiation doses easily.
Signature Sensitivity: It maintains high precision without compromising speed.

🌐 Smart Mesh Networking

One significant advantage of this monitor is its wireless connectivity. Multiple units can form a self-healing mesh network. This is possible because it uses the ZigBee IEEE 802.15.4 standard. This protocol is a leader for low-power wireless mesh networks.

Additionally, the RadWall-H adapts to your facility’s specific needs. It integrates seamlessly with our proprietary RadSuite Monitoring Software. This allows for centralized data management across multiple buildings. Thus, you can monitor your entire site from one location.

Why Choose RadWall-H?

When “High Sensitivity” is the priority, this device is the gold standard. It features a large HD LCD for clear viewing. Moreover, the incredible sensitivity of YSO+SiPM technology ensures you have meaningful data. By choosing the RadWall-H, you are investing in a future-proof safety system. It focuses on real-world applications and reliable protection for everyone.

Looking for a portable solution for individual workers? Explore our RadTarge-H Electronic Personal Dosimeter.

Technical Specifications

Detector	YSO Scintillator + SiPM
Type of Radiation Detected	Gamma, X-Ray
Energy Range	20 keV–10 MeV
Dose Rate Range	1 µrem/h–1 rem/h (0.01 µSv/h–10 mSv/h)
Sensitivity	1170 cps/mrem/h (117 cps/µSv/h) (∝ Cs-137)
Energy Response	≤ ±20% (Cs-137) @ 20 keV–60 keV ≤ ±15% (Cs-137) @ 60 keV–1.5 MeV ≤ ±20% (Cs-137) @ 1.5 MeV–3 MeV ≤ ±50% (Cs-137) @ 3 MeV–10 MeV
Dose Rate Linearity	≤ ±10% up to 1 rem/h (10 mSv/h)
Accuracy	±15% (Cs-137)
Alarm Threshold	User-set values for dose rate: 2 µrem/h–1 rem/h (0.02 µSv/h–10 mSv/h)
Alert Options	Audible (80 dB at 12 in ∕ 30 cm), Visual (LED and Display)
Alarm Response Time	< 2 s
Overload Display	Activation when > 1 rem/h (10 mSv/h) Overload indication up to 10 rem/h (100 mSv/h)
Display Units	rem, Sv, Gy, rad
Communications	ZigBee, RadSys 2.0 (Cloud-Based Software)
Power Supply	AC 100–240 V ∕ 50–60 Hz (UL Certified), Rechargeable Lithium-Ion Battery
Battery Life	Typically 8 h in Background Field
Display	HD LCD
Weight	19.0 oz (540 g)
Dimensions	⌀ 6.89 × 1.97 in (⌀ 175 x 50 mm)
Accessories	IoT-Cloud (FCC ID: 2AC7P-113), UL Certified AC Adapter
Initialization Time	< 10 s
Operating Temperature	14–122 °F (-10–50 °C)
Storage/Transport Temperature	-4–158 °F (-20–70 °C)
Relative Humidity	Up to 90% RH (Non-Condensing)
EMI/EMC	Exceeds IEC 61526 Requirements
FCC Compliance	FCC Part 15
CE Compliance	CE Certified

More Details

FEATURES & BENEFITS

1 | Features

Digital Data Acquisition	All Digital solid-state detection
High Performance Detection Design	Large size scintillator provides ultra-high detection efficiency and accuracy High-performance YSO Crystal Miniaturized SiPM High-speed chip enables fast response and the smallest dead time in industry Patented MVT digital signal processing technology provides excellent performance and stability Background radiation interference virtually eliminated
Rapid Response	Full-range reading and alarm response in less than 2 seconds Higher sensitivity allows for earlier detection Audible output quickly alerts responders of rapidly changing radiation levels Real-time, active self-reading
Quality Control System	Virtual elimination of false alarms Ability to discriminate between NORM and man-made source Programmable chips enable firmware updates and system upgrades Ultra-low power consumption High system stability and reliability Accurate and reliable data Precise quantitative analysis

2 | Benefits

As an active self-reading device, dose rate is measured in real time, enabling user to always be aware of current exposure while simultaneously transmitting data to Radiation Monitoring System (RMS)
Two types of alarms alert users in multiple ways: audible and visual
Alarm is either preset or user programmable through entire measurement range
Alarm, alarm thresholds, and configuration are programmable via wireless connection with RadSuite workstation
Proportional, real-time detection and measurement provide meaningful readouts which focus on the awareness and safety of the user during critical times
Patented MVT sampling method resulting in no signal loss and high signal to noise ratio
Low-power CMOS digital electronics combined with silicon photomultiplier chip (SiPM)
Built-in wireless communication for real-time, remote radiation monitoring, personnel tracking, and automatic reporting
Ability to generate online surveys and inspection reports
Dose rate alarms provide additional awareness of high radiation levels
Wireless communication with the RadSafe intelligent radiation management platform enables a networked RMS
Radiation monitoring combined with video surveillance allow discovery and resolution of anomalies remotely
Power redundancy with both electrical supply and UPS backup
Scalable platform achieves a variety of high and low intensity ranges with various types of Neutron and Gamma radiation probes
RadWall-H accurately monitors environmental radiation intensity through wireless communication forming a large area network
Real-time monitoring of each data control point with a central computer enables layout for mounting positions in public places and intuitive planning for radiation intensity distribution

REAL LIFE USES

Airports, train stations, and subways
Major events security and crowded areas
Monitoring health physics, medicine, and other fields that use radioactive sources
Radiological diagnosis, treatment equipment, and shielded facilities
Dispensing and using of radiopharmaceuticals and disposal sites of radioactive waste
Online monitoring of radioactive sources and radiation devices
Metal recycling, building materials production, and other risks of radioactive pollution
Production, use, storage, and disposal of radioactive sources and radiation devices
Immigration office

ACCESSORY SPECIFICATIONS

IoT-Cloud
Feature	Parameter
*Electrical & Mechanical*
Communications	MicroUSB, RJ45 (Ethernet), ZigBee
ZigBee Frequency	2.4 GHz
Power Supply	100 mA @ 5 V DC
Weight	8.1 oz (230 g)
Dimensions	5.1 x 5.9 x 1.4 in (130 x 50 x 35 mm)
*Environmental*
Operating Temperature	32–122 °F (0–50 °C)
Storage/Transport Temperature	-4–158 °F (-20–70 °C)
Humidity	Up to 90% (Non-Condensing)
EMI ∕ EMC Compliance	Exceeds IEC 61526 Requirements
FCC ID	2AC7P-113
